    Caterpillar Type Haul-off Machine

    We manufacture Caterpillar type Haul off unit helps to pull the product like Cable and Wire Production.

  • Structural Features

    • Extrusion force ranges from 200 kg to 10,000 kg.
    • The frame is made of high-quality steel plate with beautiful appearance.
    • Smooth transmission, strong load-bearing capacity and easy maintenance.
    • Optional Z4 DC motor or AC variable frequency motor. Equipped with electronic meter counting to display line speed.
    • Customized design or configuration can be provided according to customer requirements.

    Technical parameters

    • Applicable wire diameter: Dia.3.0- 150mm
    • Max traction force: 500-15000kg
    • Number of cylinders: 3-10 pairs, pneumatic compression, pneumatic tension, air pressure 0.1-1.0mpa
    • The cylinder block adopts domestic top brands, with reliable quality and stable performance.
    • The special pneumatic system design and high-quality components ensure that the crawler can press the cable without deformation under very small cylinder pressure
    • Motor power:3-37kW (AC) AC motor, variable frequency current speed regulation system control
    • Speed range : 2-150m / min, four speed change
    • Transmission form: Motor, four speed gearbox, worm reducer
    • Include Infrared meter counter
    • The panel is equipped with air pressure adjustment knob, air source switch and other load display instructions, and various protection functions are complete.
    • Power:380V 50Hz, 3 phase, 5 wire

    What cable machine can use this caterpillar:

    • Cable stranding machine
    • Electronic wire extrusion line
    • Power wire extrusion line
    • Cable rewinding line
    • Tube extrusion line

  • 500-15000mm Pneumatic Caterpillar Machine

    Our haul-offs are equipped with two independent tracks with gearboxes with continuous speed adjustment by inverter.

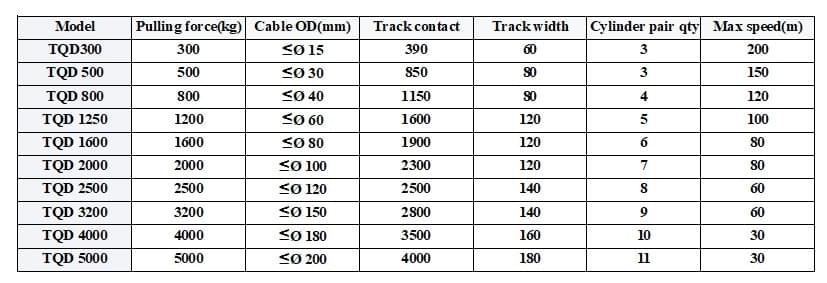

  • Technical sheet of Cable Wire Pneumatic Crawler Traction Machine

    Cable Wire Pneumatic Crawler Traction Machine

    • Flexibility in pad dimensions
    • Two independent tracks with gearboxes
    • Speed adjustment by inverter
